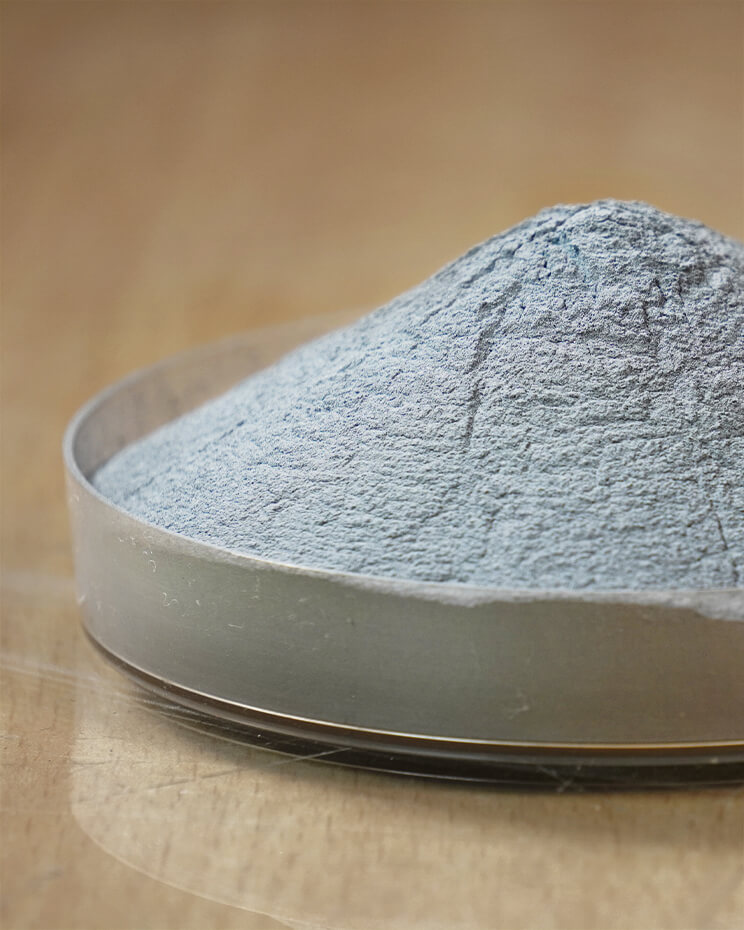

M 3/2

Specification No

IP 21104

Chemistry

W: 5.0 – 6.75 %
Cr: 3.75- 4.5 %
V: 2.75 – 3.75 %
Mo: 4.75 – 6.5 %
C: 1.1 – 1.3 %
Fe: Remainder

Size

-100 # (150 microns)

Sieve analysis

>150μm : 10 % max
<45μm : 30 % min.

Shape

Irregular

Apparent density

2.2 – 2.8 g/cc

download enquiry now

Typical Applications

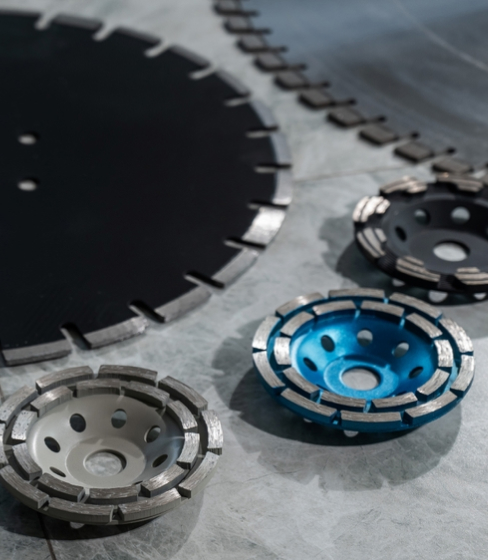

Diamond tools

CU-325 Cu-100/+240 Low Ad Cu-200 Brass 70/30 -325 Brass 60/40 -325 Sn-325 Ni-325 Ni-Cr 80/20 Ni based Boron alloy Fe-Cu 60/40 Diabond Diabond Gold Iron Phosphorous Nickel silver – Cu-Ni-Zn alloy Cu-Ni-Sn Alloy Copper Phosphorous SS 316L SS 304 SS 410L M 3/2 T-15

Grinding

SS 316L SS 304 SS 410L M 3/2 T-15

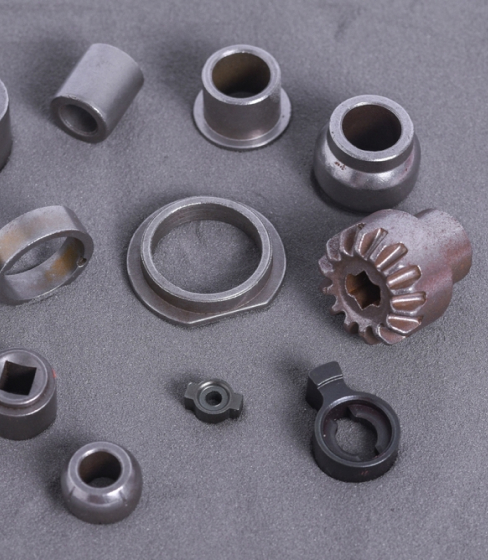

P/M Parts

CU-325 Cu-100/+240 Low Ad Cu-200 Brass 70/30 -325 Brass 60/40 -325 Nickel silver – Cu-Ni-Zn alloy Cu-Ni-Sn Alloy SS 316L SS 304 SS 410L M 3/2 T-15
